AT52BC1661AT 16-Mbit Flash 8-Mbit PSRAM Stack Memory

The AT52BC1661A(T) combines a single 16-Mbit Flash and a 8-Mbit PSRAM: both of the devices are offered in a stacked 66-ball CBGA package. The devices operate at 2.7V to 3.3V in the extended temperature range. Block Diagram ADDRESS OE WE POE PWE RESET CE FLASH RDY/BUSY PSRAM PCS1 ZZ PUB PLB DATA .

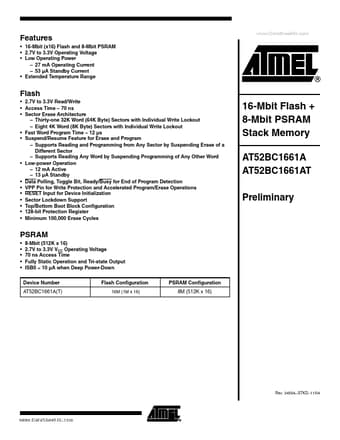

AT52BC1661AT Features

* 16-Mbit (x16) Flash and 8-Mbit PSRAM

* 2.7V to 3.3V Operating Voltage

* Low Operating Power

* 27 mA Operating Current

* 53 µA Standby Current

* Extended Temperature Range www.DataSheet4U.com Flash

* 2.7V to 3.3V Read/Write

* Access

AT52BC1661A_ATMELCorporation.pdf

AT52BC1661AT Datasheet Preview — This datasheet PDF includes multiple part numbers: AT52BC1661AT, AT52BC1661A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT52BC1661AT, AT52BC1661A

Manufacturer:

ATMEL Corporation

File Size:

487.52 KB

Description:

16-mbit flash 8-mbit psram stack memory.

Note:

This datasheet PDF includes multiple part numbers: AT52BC1661AT, AT52BC1661A.
Please refer to the document for exact specifications by model.
