AT5250 - 500mA CMOS Ultra-Low Dropout Positive Voltage Regulator

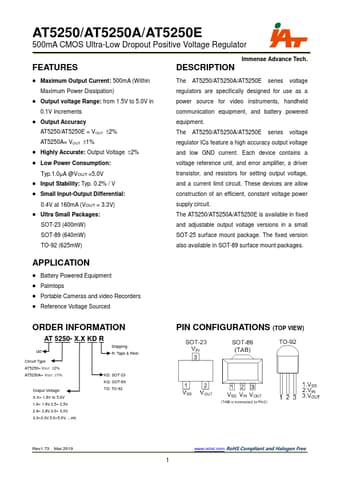

AT5250 Datasheet Preview — Preview of AT5250 PDF

Datasheet Details

Part number	AT5250
Manufacturer	IAT
File Size	0.98 MB
Description	500mA CMOS Ultra-Low Dropout Positive Voltage Regulator
Datasheet	AT5250-IAT.pdf

AT5250 Product details

Description

The AT5250/AT5250A/AT5250E series voltage regulators are specifically designed for use as a power source for video instruments, handheld communication equipment, and battery powered equipment.

Features

Maximum Output Current: 500mA (Within Maximum Power Dissipation).
Output voltage Range: from 1.5V to 5.0V in 0.1V Increments.
Output Accuracy AT5250/AT5250E = VOUT ±2% AT5250A= VOUT ±1%.
Highly Accurate: Output Voltage ±2%.
Low Power Consumption: Typ.1.0μA @VOUT =5.0V.
Input Stability: Typ. 0.2% / V.
Small Input-Output Differential: 0.4V at 160mA (VOUT = 3.3V).
Ultra Small Packages: SOT-23 (400mW) SOT-89 (640mW) TO-92 (625mW) Immense Advance Tech. DESCRI.
