AT5204E, AT5204 - Low Supply current LDO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AT5204E, AT5204. Please refer to the document for exact specifications by model.

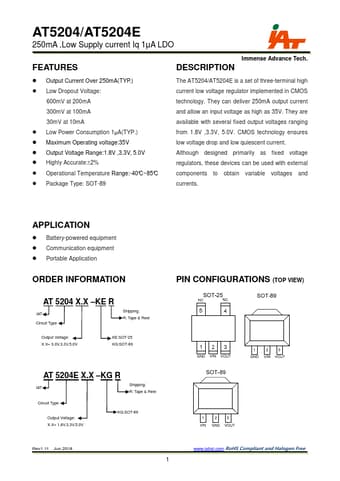

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number AT5204E, AT5204
Manufacturer IAT
File Size 1.01 MB
Description Low Supply current LDO
Datasheet download datasheet AT5204-IAT.pdf
Note This datasheet PDF includes multiple part numbers: AT5204E, AT5204.
Please refer to the document for exact specifications by model.

AT5204E Product details

Description

Output Current Over 250mA(TYP.) Low Dropout Voltage: 600mV at 200mA 300mV at 100mA 30mV at 10mA Low Power Consumption 1µA(TYP.) Maximum Operating voltage:35V Output Voltage Range:1.8V ,3.3V, 5.0V Highly Accurate:±2% Operational Temperature Range:-40°C~85°C Package Type: SOT-89 The AT5204/AT5204E is a set of three-terminal high current low voltage regulator implemented in CMOS technology.They can deliver 250mA output current and allow an input voltage as high as 35V.They are available with se

Features
