AT59C11W-10SC, AT5 - 4-Wire Serial EEPROMs

ATMEL Corporation

The AT59C11W-10SC by ATMEL Corporation is a 4-Wire Serial EEPROMs. Below is the official datasheet preview.

📥 Download Datasheet

AT59C11W-10SC 4-Wire Serial EEPROMs by ATMEL Corporation - Datasheet Preview — Official preview page of the **AT59C11W-10SC** 4-Wire Serial EEPROMs datasheet (ATMEL Corporation).

Datasheet Details

Part number	AT59C11W-10SC, AT5
Manufacturer	ATMEL Corporation
File Size	131.32 KB
Description	4-Wire Serial EEPROMs
Datasheet	AT5-9C11.pdf
Note	This datasheet PDF includes multiple part numbers: AT59C11W-10SC, AT5. Please refer to the document for exact specifications by model.

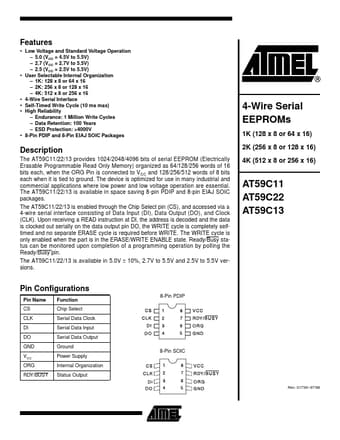

Additional preview pages of the AT59C11W-10SC datasheet.

AT59C11W-10SC Product details

Description

The AT59C11/22/13 provides 1024/2048/4096 bits of serial EEPROM (Electrically Erasable Programmable Read Only Memory) organized as 64/128/256 words of 16 bits each, when the ORG Pin is connected to VCC and 128/256/512 words of 8 bits each when it is tied to ground.

Features

Low Voltage and Standard Voltage Operation.
5.0 (VCC = 4.5V to 5.5V).
2.7 (VCC = 2.7V to 5.5V).
2.5 (VCC = 2.5V to 5.5V) User Selectable Internal Organization.
1K: 128 x 8 or 64 x 16.
2K: 256 x 8 or 128 x 16.
4K: 512 x 8 or 256 x 16 4-Wire Serial Interface Self-Timed Write Cycle (10 ms max) High Reliability.
Endurance: 1 Million Write Cycles.
Data Retention: 100 Years.
ESD Protection: >4000V 8-Pin PDIP and.
