AT59C11W-10SC-2.7

4-Wire Serial EEPROMs

AT59C11W-10SC-2.7 Features

* Low Voltage and Standard Voltage Operation

* 5.0 (VCC = 4.5V to 5.5V)

* 2.7 (VCC = 2.7V to 5.5V)

* 2.5 (VCC = 2.5V to 5.5V) User Selectable Internal Organization

* 1K: 128 x 8 or 64 x 16

* 2K: 256 x 8 or 128 x 16

* 4K: 512 x 8 or 256 x 16 4-W

AT59C11W-10SC-2.7 General Description

The AT59C11/22/13 provides 1024/2048/4096 bits of serial EEPROM (Electrically Erasable Programmable Read Only Memory) organized as 64/128/256 words of 16 bits each, when the ORG Pin is connected to VCC and 128/256/512 words of 8 bits each when it is tied to ground. The device is optimized for use in.

AT59C11W-10SC-2.7 Datasheet (131.32 KB)

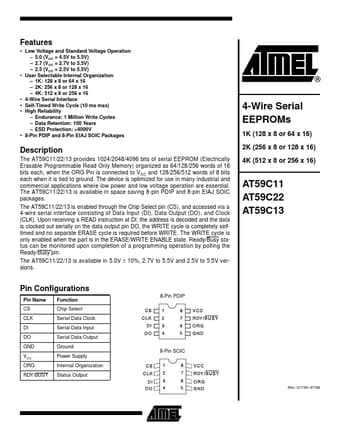

Preview of AT59C11W-10SC-2.7 PDF

Datasheet Details

Part number:

AT59C11W-10SC-2.7

Manufacturer:

ATMEL Corporation

File Size:

131.32 KB

Description:

4-wire serial eeproms.
