AT76C001

CBIC Programmable FIR Filter

ATMEL Corporation

AT76C001 Features

* 4 Multiplier-Accumulators 40 Bits Accuracy 16 Bit Data and Coefficients 4-tap Filter With 27 MHz Sample Rate Programmable to Give up to 256 Taps With Sampling Reducing Proportionally to 421,875 kHz Programmable Roundin

AT76C001 General Description

The AT76C001 Programmable Finite Impulse Response (FIR) Filter implements a 4th order FIR cell built around 4 multiplier-accumulators. It contains a dual-port RAM and a RAM which are used to implement FIR filters of up to 256 taps. High order filters are achieved by multiplexing the 4th order cell a.

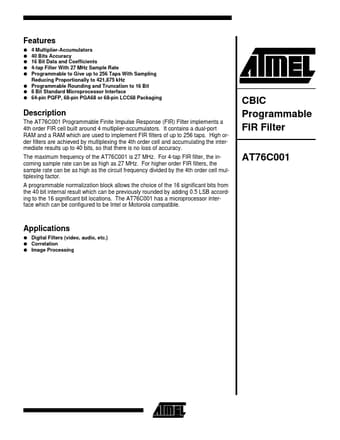

AT76C001 Datasheet (73.67 KB)

AT76C001 Datasheet Preview — Preview of AT76C001 PDF

Datasheet Details

Part number:

AT76C001

Manufacturer:

ATMEL Corporation

File Size:

73.67 KB

Description:

Cbic programmable fir filter.
