AT76C101

JPEG Image Compression Processor

AT76C101 Features

* Compatible with the JPEG Baseline Standard as Defined by ISO IS 109 18-1 Highly-integrated, Low-cost Single Chip Solution Up to 40 Mbytes/sec Sustained Compression Rate Maximum Processing Rate of 1.6

AT76C101 General Description

The AT76C101 is an Image Compression/Decompression Processor that performs the JPEG Baseline Algorithm. The system is capable of high quality compression and decompression of continues-tone color or monochrome images. The AT76C101 performs the Discrete Cosine Transform, Quantization, and Entropy Enc.

AT76C101 Datasheet (111.17 KB)

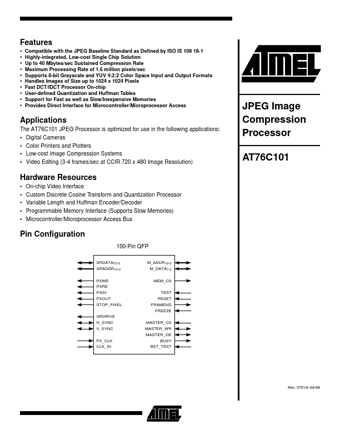

Preview of AT76C101 PDF

Datasheet Details

Part number:

AT76C101

Manufacturer:

ATMEL Corporation

File Size:

111.17 KB

Description:

Jpeg image compression processor.
