AT7650A - 6 Pin Primary-side current control IC

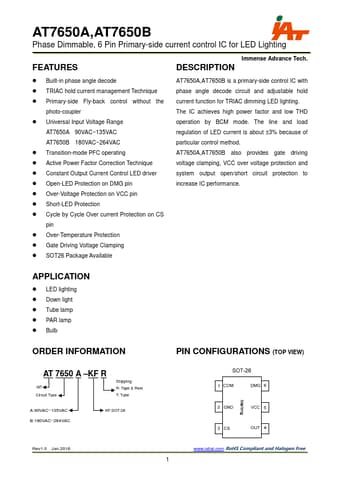

AT7650A Datasheet Preview — Preview of AT7650A PDF

Datasheet Details

Part number	AT7650A
Manufacturer	IAT
File Size	190.01 KB
Description	6 Pin Primary-side current control IC
Datasheet	AT7650A-IAT.pdf

AT7650A Product details

Description

Built-in phase angle decode TRIAC hold current management Technique Primary-side Fly-back control without the photo-coupler Universal Input Voltage Range AT7650A 90VAC~135VAC AT7650B 180VAC~264VAC Transition-mode PFC operating Active Power Factor Correction Technique Constant Output Current Control LED driver Open-LED Protection on DMG pin Over-Voltage Protection on VCC pin Short-LED Protection Cycle by Cycle Over current Protection on CS pin Over-Temperature Protection Gate Driving Voltage Cla

Features

Immense Advance Tech.
