AT78C1503 - DVD/CD Read Channel

Name: AT78C1503
SKU: AT78C1503-130195

ATMEL Corporation

📥 Download Datasheet

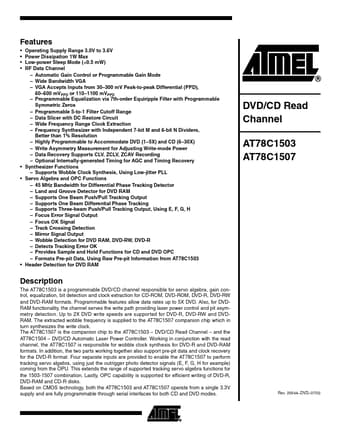

AT78C1503 Datasheet Preview — Preview of AT78C1503 PDF

Datasheet Details

Part number	AT78C1503
Manufacturer	ATMEL Corporation
File Size	107.04 KB
Description	DVD/CD Read Channel
Datasheet	AT78C1503_ATMELCorporation.pdf

AT78C1503 Product details

Description

The AT78C1503 is a programmable DVD/CD channel responsible for servo algebra, gain control, equalization, bit detection and clock extraction for CD-ROM, DVD-ROM, DVD-R, DVD-RW and DVD-RAM formats.

Features

Operating Supply Range 3.0V to 3.6V Power Dissipation 1W Max Low-power Sleep Mode (.
