AT78C5009 - Serial ATA Host Bridge

ATMEL Corporation

📥 Download Datasheet

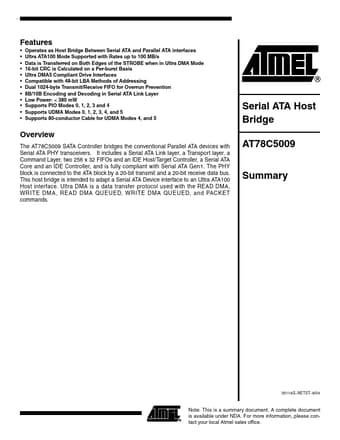

AT78C5009 Datasheet Preview — Preview of AT78C5009 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT78C5009
Manufacturer	ATMEL Corporation
File Size	127.77 KB
Description	Serial ATA Host Bridge
Datasheet	AT78C5009_ATMELCorporation.pdf

AT78C5009 Product details

Features

Operates as Host Bridge Between Serial ATA and Parallel ATA interfaces Ultra ATA100 Mode Supported with Rates up to 100 MB/s Data is Transferred on Both Edges of the STROBE when in Ultra DMA Mode 16-bit CRC is Calculated on a Per-burst Basis Ultra DMA5 Compliant Drive Interfaces Compatible with 48-bit LBA Methods of Addressing Dual 1024-byte Transmit/Receive FIFO for Overrun Pr.
