AT78L05, AT78L00 - 100mA Positive Voltage Regulator

Name: AT78L05
SKU: AT78L05-1356440

📥 Download Datasheet

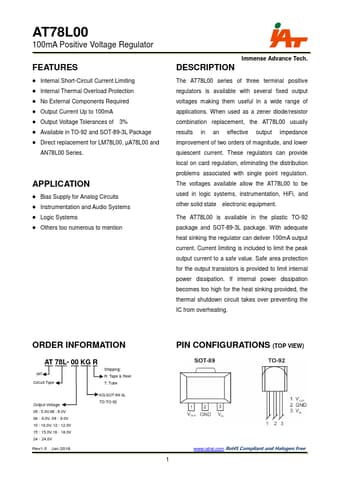

AT78L05 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT78L05, AT78L00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AT78L05, AT78L00
Manufacturer	IAT
File Size	329.86 KB
Description	100mA Positive Voltage Regulator
Datasheet	AT78L00-IAT.pdf
Note	This datasheet PDF includes multiple part numbers: AT78L05, AT78L00. Please refer to the document for exact specifications by model.

AT78L05 Product details

Description

The AT78L00 series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications.

Features

Internal Short-Circuit Current Limiting Internal Thermal Overload Protection No External Components Required Output Current Up to 100mA Output Voltage Tolerances of 3% Available in TO-92 and SOT-89-3L Package Direct replacement for LM78L00, µA78L00 and AN78L00 Series.
