AT78C5091 - 1-CHANNEL SERIAL ATA PHY

ATMEL Corporation

📥 Download Datasheet

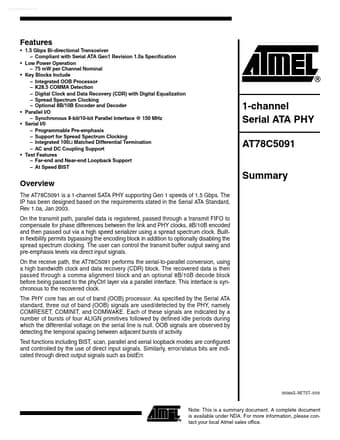

AT78C5091 Datasheet Preview — Preview of AT78C5091 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT78C5091
Manufacturer	ATMEL Corporation
File Size	160.53 KB
Description	1-CHANNEL SERIAL ATA PHY
Datasheet	AT78C5091_ATMELCorporation.pdf

AT78C5091 Product details

Description

at any time without notice.

Features

1.5 Gbps Bi-directional Transceiver.
Compliant with Serial ATA Gen1 Revision 1.0a Specification.
Low Power Operation.
75 mW per Channel Nominal.
Key Blocks Include.
Integrated OOB Processor.
K28.5 COMMA Detection.
Digital Clock and Data Recovery (CDR) with Digital Equalization.
Spread Spectrum Clocking.
Optional 8B/10B Encoder and Decoder.
Parallel I/O.
Synchronous 8-bit/10-bit Parallel.
