AT78C7015 Datasheet - ATMEL Corporation

AT78C7015 Spindle/VCM Motor Controller/Drivers

The AT78C7015 is a CMOS monolithic device that integrates Spindle and VCM controllers as well as power stages into one chip. The device operates from 3.3V power supply. The AT78C7015 is designed for a small-form-factor hard disk drive application. A precision low-voltage detection circuit monitors t.

AT78C7015 Features

* Operates from Single Supply: 3.3V Small Footprint 64-Pin TQFP Package or Flip Chip Precision Low-voltage Monitor Circuitry for the Power Supply Master Power on Reset Serial Port Interface with Read-ba

AT78C7015 Datasheet (160.18 KB)

Preview of AT78C7015 PDF

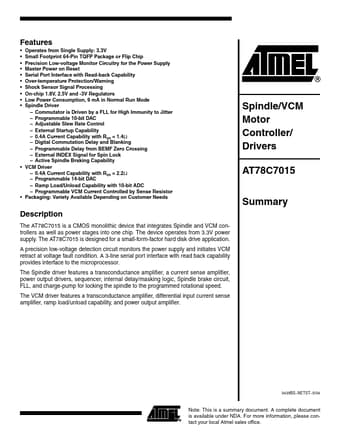

AT78C7015 Datasheet Preview Page 2 AT78C7015 Datasheet Preview Page 3

Datasheet Details

Part number:

AT78C7015

Manufacturer:

ATMEL Corporation

File Size:

160.18 KB

Description:

Spindle/vcm motor controller/drivers.
