AT79C1010 - 4-port Layer 2 Unmanaged Switched Ethernet Controller

Product Overview

ATMEL Corporation

📥 Download Datasheet

AT79C1010 4-port Layer 2 Unmanaged Switched Ethernet Controller by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT79C1010

Datasheet Details

Part number	AT79C1010
Manufacturer	ATMEL Corporation
File Size	68.70 KB
Description	4-port Layer 2 Unmanaged Switched Ethernet Controller
Datasheet	AT79C1010 Datasheet

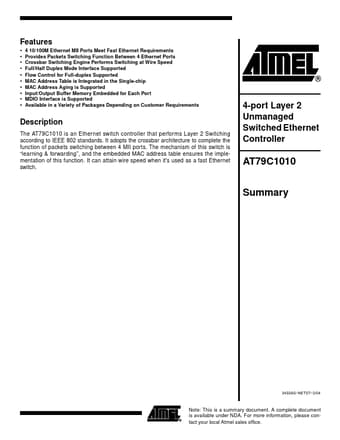

Additional preview pages of the AT79C1010 datasheet.

Product details

Description

The AT79C1010 is an Ethernet switch controller that performs Layer 2 Switching according to IEEE 802 standards.

Features

4 10/100M Ethernet MII Ports Meet Fast Ethernet Requirements Provides Packets Switching Function Between 4 Ethernet Ports Crossbar Switching Engine Performs Switching at Wire Speed Full/Half Duplex Mode Interface Supported Flow Control for Full-duplex Supported MAC Address Table is Integrated in the Single-chip MAC Address Aging is Supported Input/Output Buffer Memory Embedded for Each Port MDIO I.
