AT79C1020

4-port Layer 2 10/100/1000Mbps Unmanaged Switched Ethernet Controller

AT79C1020 Features

* Supports Four 10/100/1000 Mbps Ethernet Ports with GMII/MII Interface IEEE 802.3ab CSMA/CD Compliant Full and Half Duplex Mode of Operation Speed and Duplex Mode Auto-neg

AT79C1020 General Description

This Layer 2 Switch provides an ideal solution for the design of unmanaged full wirespeed multi-port Gigabit Ethernet (GbE) switches. Each port suppor ts either 10/100/1000 Mbps data rate. Flow controls, back pressure in half-duplex mode and PAUSE frame in full-duplex mode are employed to solve the .

AT79C1020 Datasheet (64.09 KB)

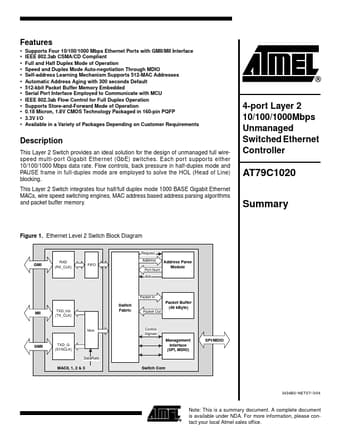

Preview of AT79C1020 PDF

Datasheet Details

Part number:

AT79C1020

Manufacturer:

ATMEL Corporation

File Size:

64.09 KB

Description:

4-port layer 2 10/100/1000mbps unmanaged switched ethernet controller.
