AT89S4D12

8-Bit Microcontroller with 132K Bytes Flash Data Memory

AT89S4D12 Features

* Compatible with MCS-51™ Products

* 128K Bytes of In-System Reprogrammable Flash data memory and 4K Bytes of Downloadable Flash Program Memory

* Endurance: 1,000 Write/Erase Cycles per Sector

* Data Retention: 10 Years Sector Programming: 128 Bytes/Sector Single 3.3V

AT89S4D12 General Description

The AT89S4D12 is a low-voltage, highly integrated CMOS 8-bit microcomputer with 4K bytes of downloadable Flash program memory and 128K bytes of in-system reprogrammable Flash data memory. The device is manufactured using Atmel’s high density Flash memory technology and is compatible with the industr.

AT89S4D12 Datasheet (120.37 KB)

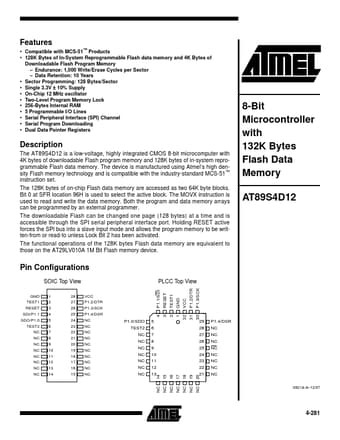

Preview of AT89S4D12 PDF

Datasheet Details

Part number:

AT89S4D12

Manufacturer:

ATMEL Corporation

File Size:

120.37 KB

Description:

8-bit microcontroller with 132k bytes flash data memory.
