AT89S53

8-bit Microcontroller

AT89S53 Features

* Compatible with MCS-51™ Products

* 12K Bytes of In-System Reprogrammable Downloadable Flash Memory

* SPI Serial Interface for Program Downloading

* Endurance: 1,000 Write/Erase Cycles

* 4V to 6V Operating Range

* Fully Static Operation: 0 Hz to 24 MH

AT89S53 General Description

The AT89S53 is a low-power, high-performance CMOS 8-bit microcomputer with 12K bytes of downloadable Flash programmable and erasable read only memory. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction se.

AT89S53 Datasheet (870.98 KB)

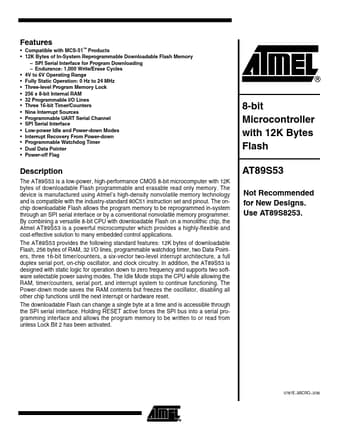

Preview of AT89S53 PDF

Datasheet Details

Part number:

AT89S53

Manufacturer:

ATMEL

File Size:

870.98 KB

Description:

8-bit microcontroller.
