AT89C51 - 8-Bit Microcontroller

AT89C51 Description

.
The AT89C51 is a low-power, high-performance CMOS 8-bit microcomputer with 4K bytes of Flash programmable and erasable read only memory (PEROM).

AT89C51 Features

* Compatible with MCS-51™ Products
* 4K Bytes of In-System Reprogrammable Flash Memory
* Endurance: 1,000 Write/Erase Cycles
* Fully Static Operation: 0 Hz to 24 MHz
* Three-level Program Memory Lock
* 128 x 8-bit Internal RAM
* 32 Programmable

AT89C51 Applications

* (WR)P3.6 12 (RD) P3.7 13 XTAL2 14 XTAL1 15 GND 16 GND 17 (A8) P2.0 18 (A9) P2.1 19 (A10) P2.2 20 (A11) P2.3 21 (A12) P2.4 22 44 43 42 41 40 39 38 37 36 35 34 P1.4 P1.3 P1.2 P1.1 (T2 EX) P1.0 (T2) NC VCC P0.0 (AD0) P0.1 (AD1) P0.2 (AD2) P0.3 (AD3) Pin Configurations PQFP/TQFP P1.5 P1.6 P1.7 RS

📥 Download Datasheet

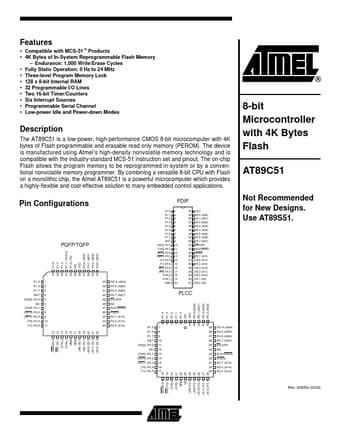

Preview of AT89C51 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT89C51
Manufacturer
ATMEL
File Size
131.16 KB
Datasheet
AT89C51-ATMEL.pdf
Description
8-Bit Microcontroller
