AT89C5132

(AT83C5132 / AT89C5132) Usb C51-based Microcontroller

AT89C5132 Features

* Programmable Audio Output for Interfacing with Common Audio DAC

* PCM Format Compatible

* I2S Format Compatible

* 8-bit MCU C51 Core-based (FMAX = 20 MHz)

* 2304 Bytes of Internal RAM

* 64K Bytes of Code Memory

* Flash: AT89C5132, ROM: AT83C5

AT89C5132 General Description

The AT8xC5132 are mass storage devices controlling data exchange between various Flash modules, HDD and CD-ROM. The AT89C5132 includes 64K Bytes of Flash memory and allows In-System Programming through an embedded 4K Bytes of Boot Flash Memory. The AT83C5132 includes 64K Bytes of ROM memory. The AT.

AT89C5132 Datasheet (2.25 MB)

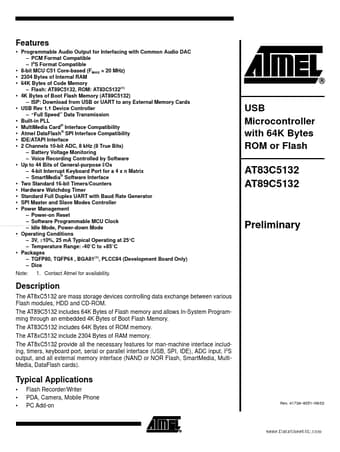

Preview of AT89C5132 PDF

Datasheet Details

Part number:

AT89C5132

Manufacturer:

ATMEL Corporation

File Size:

2.25 MB

Description:

(at83c5132 / at89c5132) usb c51-based microcontroller.
