AT89C5130A-M - 8-bit Flash Microcontroller

Product Overview

ATMEL Corporation

📥 Download Datasheet

AT89C5130A-M 8-bit Flash Microcontroller by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT89C5130A-M

Datasheet Details

Part number	AT89C5130A-M
Manufacturer	ATMEL Corporation
File Size	1.37 MB
Description	8-bit Flash Microcontroller
Datasheet	AT89C5130A-M Datasheet

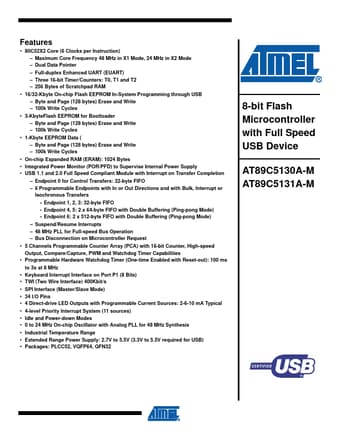

Additional preview pages of the AT89C5130A-M datasheet.

Product details

Description

AT89C5130A/31A-M is a high-performance Flash version of the 80C51 single-chip 8-bit microcontrollers with full speed USB functions.

Features

80C52X2 Core (6 Clocks per Instruction).
Maximum Core Frequency 48 MHz in X1 Mode, 24 MHz in X2 Mode.
Dual Data Pointer.
Full-duplex Enhanced UART (EUART).
Three 16-bit Timer/Counters: T0, T1 and T2.
256 Bytes of Scratchpad RAM.
16/32-Kbyte On-chip Flash EEPROM In-System Programming through USB.
Byte and Page (128 bytes) Erase and Write.
100k Write Cycles.
3-KbyteFlash EEPROM for Bootloader.
Byte.
