ATA5743 Datasheet - ATMEL Corporation

ATA5743, UHF ASK/FSK Receiver

.
The ATA5743 is a multi-chip PLL receiver device supplied in an SSO20 package.

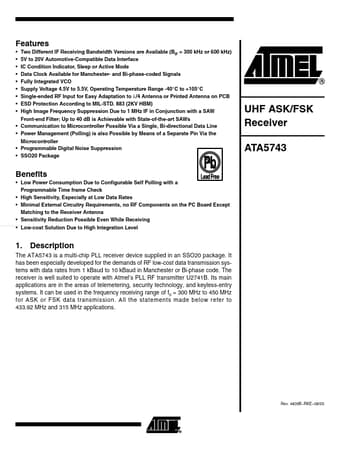

datasheet Preview Page 1 from Datasheet4u.com

ATA5743_ATMELCorporation.pdf

ATA5743 Datasheet Preview — Preview of ATA5743 PDF

Datasheet Details

Part number:

ATA5743

Manufacturer:

ATMEL Corporation

File Size:

791.45 KB

Description:

UHF ASK/FSK Receiver

Features

* Two Different IF Receiving Bandwidth Versions are Available (BIF = 300 kHz or 600 kHz) 5V to 20V Automotive-Compatible Data Interface IC Condition Indicator, Sleep or Act

Applications

* are in the areas of telemetering, security technology, and keyless-entry systems. It can be used in the frequency receiving range of f0 = 300 MHz to 450 MHz for ASK or FSK data transmission. All the statements made below refer to 433.92 MHz and 315 MHz applications. Rev. 4839B
* RKE
