ATA5723

(ATA5723 - ATA5728) UHF ASK/FSK Receiver

ATA5723 Features

* Frequency Receiving Range of (3 Versions)

* f0 = 312.5 MHz to 317.5 MHz or

* f0 = 431.5 MHz to 436.5 MHz or

* f0 = 868 MHz to 870 MHz 30 dB Image Rejection Receiving Bandwidth

* BIF = 300 kHz for 315 MHz/433 MHz Version

* BIF = 600 kHz for 868 MHz Ve

ATA5723 General Description

The ATA5723/ATA5724/ATA5728 is a multi-chip PLL receiver device supplied in an SSO20 package. It has been specially developed for the demands of RF low-cost data transmission systems with data rates from 1 kBit/s to 10 kBbit/s in Manchester or Bi-phase code. Its main applications are in the areas of.

ATA5723 Datasheet (825.18 KB)

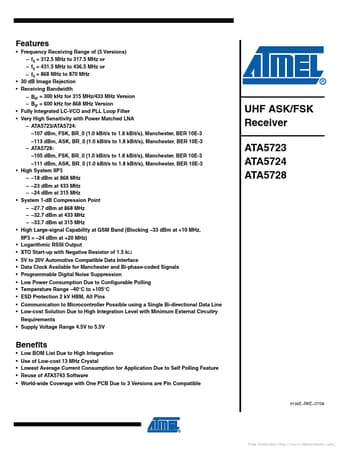

Preview of ATA5723 PDF
