ATA6025

WATCHDOG IC

ATA6025 Features

* Watchdog Adjustable

* Over- and Undervoltage Detection of Vcc = 5V

* Standby Modes On/Off via Ignition Pin VKL15

* Internal Time Delay for Output Signal

* Push-pull Output Driver

* Interference and Damage Protection According to ISO/CD 7637

ATA6025 General Description

The ATA6025 is a monolithic circuit based on Atmel’s smart power BCD60-III technology. It is a universal IC for monitoring basic functions of an automotive application. It is possible to monitor the battery voltage (VKL15) and an external 5V voltage regulator. With the independent watchdog the corre.

ATA6025 Datasheet (223.11 KB)

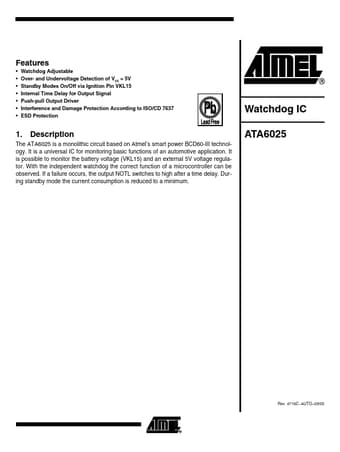

Preview of ATA6025 PDF

Datasheet Details

Part number:

ATA6025

Manufacturer:

ATMEL Corporation

File Size:

223.11 KB

Description:

Watchdog ic.
