ATR0600 - GPS Front-End

ATR0600 Description

www.DataSheet4U.com .
With the growing importance of mobile communication, location awareness is a key feature for more and more products and services.

ATR0600 Features

* Very Low Power Design (≈ 50 mW) Single IF Concept 2-bit ADC on Chip Small QFN Package (28 Pins) Highly Integrated, Few External Components UHF6 Technology Electrostatic sensitive device. Observe precautions for handling. GPS Front-end IC

ATR0600 Applications

* and navigation systems. Figure 1. Block Diagram 96.76 MHz 1575.42 MHz LC-BP VS3 LNA RFIN Preliminary Ant BP NBP BPI NBPI REF VDIG Dig. IF at 4.35 MHz SIGH SAW RFNIN VGA amp BP-Filter SIGL SC 23.104 MHz OR AGCO VCO 1478.6 MHz 64 1 1 4 Power control GC PFD XTO P2 VS1 VS2 VS5 VS7 X XT

📥 Download Datasheet

Preview of ATR0600 PDF

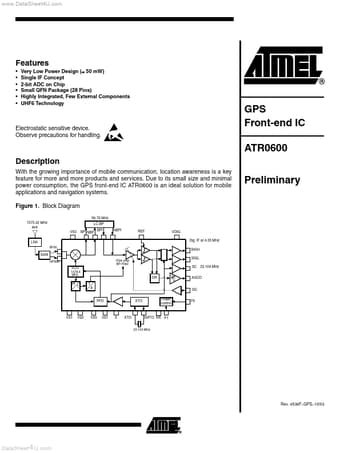

datasheet Preview Page 2 datasheet Preview Page 3
