ATR0621 - GPS Baseband Processor

ATR0621 Description

www.DataSheet4U.com .
The GPS baseband processor ATR0621 includes a 16-channel GPS correlator and is based on the ARM7TDMI® processor core.

ATR0621 Features

* 16 Channel GPS Correlator
* 8192 Search Bins with GPS Acquisition Accelerator
* Accuracy: 2.5m CEP (Stand-Alone, S/A off)
* Time to First Fix: 34s (Cold Start)
* Acquisition Sensitivity:
* 140 dBm
* Tracking Sensitivity:
* 150 dBm Utili

ATR0621 Applications

* The ATR0621 has a USB device port. This port is compliant with the Universal Serial Bus (USB) V2.0 fullspeed device specification. The ATR0621 has a direct connection to off-chip memory, including Flash, through the External Bus Interface (EBI). The ATR0621 includes full GPS firmware, licensed from

📥 Download Datasheet

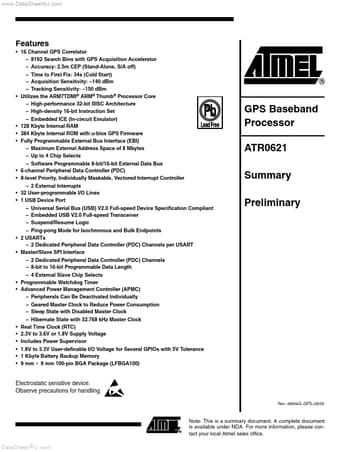

Preview of ATR0621 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATR0621
Manufacturer
ATMEL Corporation
File Size
570.54 KB
Datasheet
ATR0621_ATMELCorporation.pdf
Description
GPS Baseband Processor
