ATR0843 - 4-channel Laser Driver

ATR0843 Description

.
The ATR0843 is a laser diode driver designed to operate two differently grounded laser diodes for DVD-RW/+RW (650 nm) and CD-RW (780 nm).

ATR0843 Features

* Current-controlled Output Current Source with 4 Input Channels LVDS/CMOS Compatible Inputs Channel 2, 3, and 4 Separate Read-channel Enable (NER) Two Selectable Outputs for Grounde

ATR0843 Applications

* DVD Blue Laser
* DVD-RAM/DVD-RW/DVD+RW with CD-RW Capability

📥 Download Datasheet

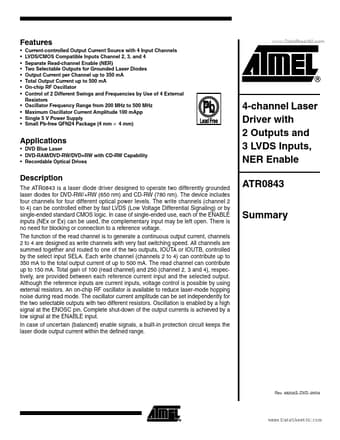

Preview of ATR0843 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATR0843
Manufacturer
ATMEL
File Size
170.94 KB
Datasheet
ATR0843_ATMEL.pdf
Description
4-channel Laser Driver
