ATR0808

Three Channel Laser Driver

ATR0808 Features

* Current-controlled Output Current Source with 3 Input Channels Two Selectable Outputs for Grounded Laser Diodes Output Current per Write Channel: 350 mA Total Output Curr

ATR0808 General Description

The ATR0808 is a laser diode driver for the operation of two different grounded laser diodes for DVD-RW/DVD+RW (650 nm) and CD-RW (780 nm). It includes three channels for three different optical power levels which are controlled by a separate IC. The read channel generates a continuous output level,.

ATR0808 Datasheet (263.24 KB)

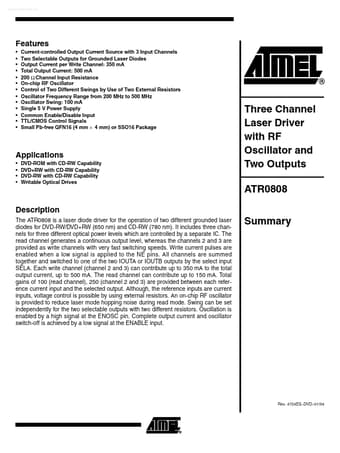

Preview of ATR0808 PDF

Datasheet Details

Part number:

ATR0808

Manufacturer:

ATMEL Corporation

File Size:

263.24 KB

Description:

Three channel laser driver.
