TS80C51U2 - (TS80C51U2 - TS87C51U2) Double UART 8-bit CMOS Microcontroller

Product Overview

ATMEL Corporation

Part number	TS80C51U2
Manufacturer	ATMEL Corporation
File Size	840.89 KB
Description	(TS80C51U2 - TS87C51U2) Double UART 8-bit CMOS Microcontroller
Datasheet	TS80C51U2 Datasheet

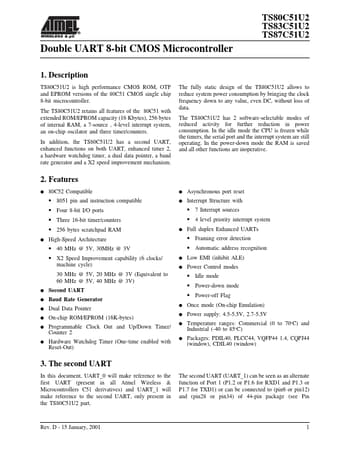

Additional preview pages of the TS80C51U2 datasheet.

TS80C51U2 is high performance CMOS ROM, OTP and EPROM versions of the 80C51 CMOS single chip 8-bit microcontroller.

of the 80C51 with extended ROM/EPROM capacity (16 Kbytes), 256 bytes of internal RAM, a 7-source , 4-level interrupt system, an on-chip oscilator and three timer/counters. In addition, the TS80C51U2 has a second UART, enhanced functions on both UART, enhanced timer 2, a hardware watchdog timer, a dual data pointer, a baud rate generator and a X2 speed improvement mechanism. The fully static design of the TS80C51U2 allows to reduce system power consumption by bringing the clock frequency down to.
