TS80C186EC - 16-Bit High Integration Embedded Processors

Product Overview

Intel

Datasheet Details

Part number	TS80C186EC
Manufacturer	Intel
File Size	1.63 MB
Description	16-Bit High Integration Embedded Processors
Datasheet	TS80C186EC Datasheet
Note	This datasheet PDF includes multiple part numbers: TS80C186EC, TS80C188EC. Please refer to the document for exact specifications by model.

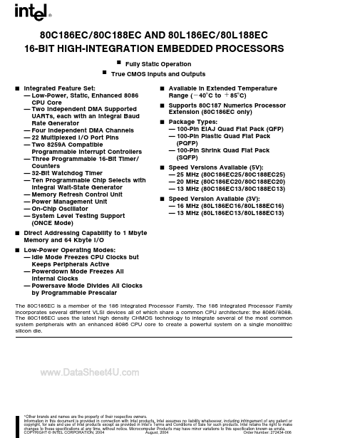

Additional preview pages of the TS80C186EC datasheet.

Product details

Description

Pinout Package Thermal Specifications ELECTRICAL SPECIFICATIONS Absolute Maximum Ratings PAGE 4 4 4 4 5 7 7 7 7 7 7 7 7 8 8 8 8 8 8 15 24 25 25 CONTENTS Recommended Connections DC SPECIFICATIONS ICC versus Frequency and Voltage PDTMR Pin Delay Calculation AC SPECIFICATIONS AC Characteristics 80C186EC25 AC Characteristics 80C186EC20 13 AC Characteristics 80L186EC13 AC Characteristics 80L186EC16 Relative Timings Serial Port Mode 0 Timings AC TEST CONDITIONS AC TIMING WAVEFORMS DERATING CURVES RE

Features

a crystal oscillator a divideby-two counter and three low-power operating modes The oscillator circuit is designed to be used with either a parallel resonant fundamental or third-overtone mode crystal network Alternatively the oscillator circuit may be driven from an external clock source Figure 2 shows the various operating modes of the oscillator circuit The crystal or clock frequency chosen must be twice the required processor operating frequency due to the internal divide-by-two counter This.
