TS80C188EB, TS80C186EB20, 16-BIT HIGH-INTEGRATION EMBEDDED PROCESSORS

80C186EB 80C188EB AND 80L186EB 80L188EB 16-BIT HIGH-INTEGRATION EMBEDDED PROCESSORS X Y X Full Static Operation True CMOS Inputs and Outputs Y Integ.
80C186EB PINOUT PACKAGE THERMAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS Absolute Maximum Ratings PAGE 4 4 4 4 5 5 5 7 7 7 7 7 7 7 8 8 8 14 22 23 23.

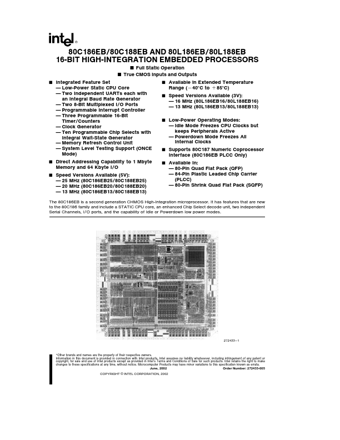

datasheet Preview Page 1 from Datasheet4u.com

TS80C186EB20_IntelCorporation.pdf

TS80C188EB Datasheet Preview — This datasheet PDF includes multiple part numbers: TS80C188EB, TS80C186EB20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS80C188EB, TS80C186EB20

Manufacturer:

Intel Corporation

File Size:

576.00 KB

Description:

16-BIT HIGH-INTEGRATION EMBEDDED PROCESSORS

Note:

This datasheet PDF includes multiple part numbers: TS80C188EB, TS80C186EB20.
Please refer to the document for exact specifications by model.

Features

* that are new to the 80C186 family and include a STATIC CPU core an enhanced Chip Select decode unit two independent Serial Channels I O ports and the capability of Idle or Powerdown low power modes 272433
* 1 Other brands and names are the property of their respective owners Information in

Applications

* Low-Power applications benefit from the static design of the CPU core and the integrated peripherals as well as low voltage operation Minimum current consumption is achieved by providing a Powerdown mode that halts operation of the device and freezes the clock circuits Peripheral design enhancements
