TS86101G2B - 4:1 10-bit 1.2 Gsps MUX-DAC

Product Overview

ATMEL Corporation

Datasheet Details

Part number	TS86101G2B
Manufacturer	ATMEL Corporation
File Size	59.01 KB
Description	4:1 10-bit 1.2 Gsps MUX-DAC
Datasheet	TS86101G2B Datasheet

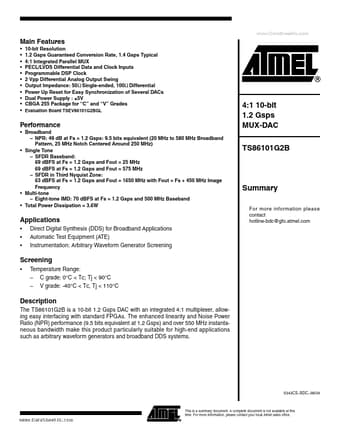

Additional preview pages of the TS86101G2B datasheet.

Product details

Description

The TS86101G2B is a 10-bit 1.2 Gsps DAC with an integrated 4:1 multiplexer, allowing easy interfacing with standard FPGAs. BDC 08/04 This is a summary document.A complete document is not available at this

Features

10-bit Resolution 1.2 Gsps Guaranteed Conversion Rate, 1.4 Gsps Typical 4:1 Integrated Parallel MUX PECL/LVDS Differential Data and Clock Inputs Programmable DSP Clock 2 Vpp Differential Analog Output Swing Output Impedance: 50Ω Single-ended, 100Ω Differential Power Up Reset for Easy Synchronization of Several DACs Dual Power Supply : ±5V CBGA 255 Package for “C” and “V” Grades Evaluatio.
