TS87C52X2, TS80C32X2 - 8-bit Microcontroller

ATMEL Corporation

The TS87C52X2 by ATMEL Corporation is a 8-bit Microcontroller. Below is the official datasheet preview.

Datasheet Details

Part number	TS87C52X2, TS80C32X2
Manufacturer	ATMEL Corporation
File Size	666.68 KB
Description	8-bit Microcontroller
Datasheet	TS80C32X2_ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: TS87C52X2, TS80C32X2. Please refer to the document for exact specifications by model.

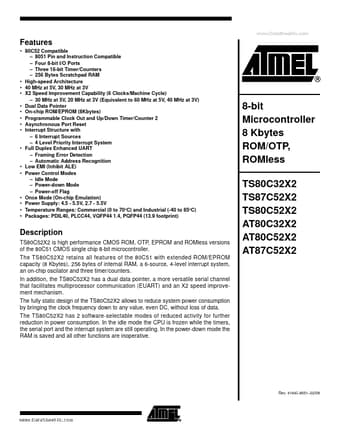

Additional preview pages of the TS87C52X2 datasheet.

TS80C52X2 is high performance CMOS ROM, OTP, EPROM and ROMless versions of the 80C51 CMOS single chip 8-bit microcontroller.

80C52 Compatible.
8051 Pin and Instruction Compatible.
Four 8-bit I/O Ports.
Three 16-bit Timer/Counters.
256 Bytes Scratchpad RAM High-speed Architecture 40 MHz at 5V, 30 MHz at 3V X2 Speed Improvement Capability (6 Clocks/Machine Cycle).
30 MHz at 5V, 20 MHz at 3V (Equivalent to 60 MHz at 5V, 40 MHz at 3V) Dual Data Pointer On-chip ROM/EPROM (8Kbytes) Programmable Clock Out and Up/Down Timer/Counter 2 Asynchronous Port Reset Interrupt Stru.
