TS8728N Datasheet, Switch, Tagore

TS8728N Features

  • Switch
  • Switching Time: 0.75s
  • Low TX insertion loss: 0.39dB @ 3550MHz
  • High isolation: 38dB @ 3550MHz
  • 400W 20% Duty Cycle 2.0ms Pulse Width
  • Ver

PDF File Details

Part number:

TS8728N

Manufacturer:

Tagore

File Size:

0.98MB

Download:

📄 Datasheet

Description:

400w 20% duty cycle 2.0ms pulse width peak gan rf switch. The TS8728N is an asymmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high power switching applicati

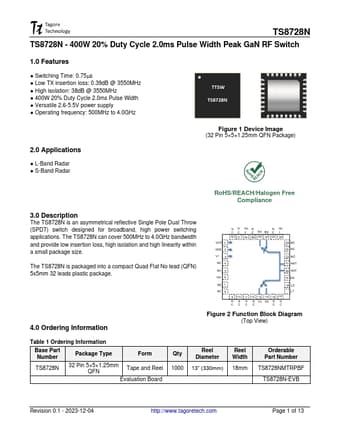

Datasheet Preview: TS8728N 📥 Download PDF (0.98MB)
Page 2 of TS8728N Page 3 of TS8728N

TS8728N Application

  • Applications
  • L-Band Radar
  • S-Band Radar Figure 1 Device Image (32 Pin 5×5×1.25mm QFN Package) RoHS/REACH/Halogen Free Complianc
