TS82420K

Broadband SP4T GaN RF Switch

TS82420K Features

* Low insertion loss: 0.2 @ 800MHz

* Low insertion loss: 0.3 @ 2700MHz

* High isolation: 40 @ 800MHz

* High isolation: 25 @ 2700MHz

* P0.1dB: 40dBm CW, 45dBm Peak Power

* No external DC blocking capacitors on RF lines

* Versatile 2.6-5.25V power supply

* Operating fre

TS82420K General Description

The TS82420K is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applications. Its broadband behavior from 30 MHz to 5.0 GHz frequencies makes the TS82420K an excellent switch for all applications requiring low insertion loss, high isolatio.

TS82420K Datasheet (487.26 KB)

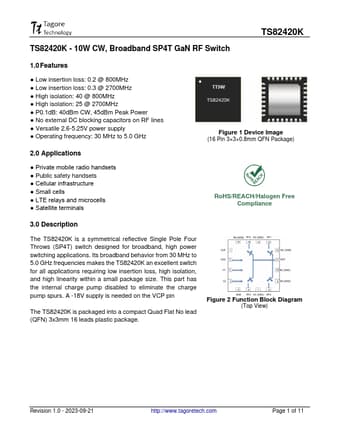

Preview of TS82420K PDF

Datasheet Details

Part number:

TS82420K

Manufacturer:

Tagore

File Size:

487.26 KB

Description:

Broadband sp4t gan rf switch.
