TS820-600B

Sensitive and standard 8A SCRs

TS820-600B Features

* On-state rms current, IT(RMS) 8 A

* Repetitive peak off-state voltage, VDRM/VRRM 600 and 800 V

* Triggering gate current, IGT 0.2 to 15 mA Description Available either in sensitive (TS8) or standard (TN8 / TYN) gate triggering levels, the 8 A SCR series is suitable to fit a

TS820-600B General Description

Available either in sensitive (TS8) or standard (TN8 / TYN) gate triggering levels, the 8 A SCR series is suitable to fit all modes of control found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capac.

TS820-600B Datasheet (384.06 KB)

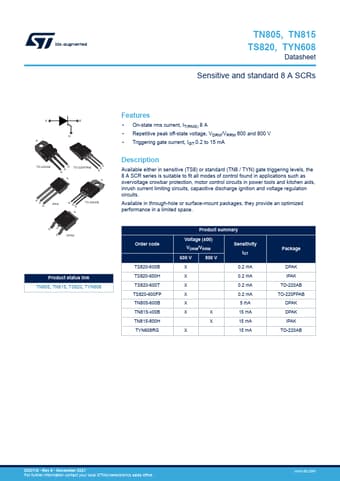

Preview of TS820-600B PDF

Datasheet Details

Part number:

TS820-600B

Manufacturer:

STMicroelectronics ↗

File Size:

384.06 KB

Description:

Sensitive and standard 8a scrs.
TN805, TN815 TS820, TYN608 Datasheet Sensitive and standard 8 A SCRs A A K G TO-220AB G A TO-220FPAB K A G A K A K A G IPAK K AG A TO-220A.
