TS820-600H, TS820, Sensitive and standard 8A SCRs

TN805, TN815 TS820, TYN608 Datasheet Sensitive and standard 8 A SCRs A A K G TO-220AB G A TO-220FPAB K A G A K A K A G IPAK K AG A TO-220A.
Available either in sensitive (TS8) or standard (TN8 / TYN) gate triggering levels, the 8 A SCR series is suitable to fit all modes of control found i.

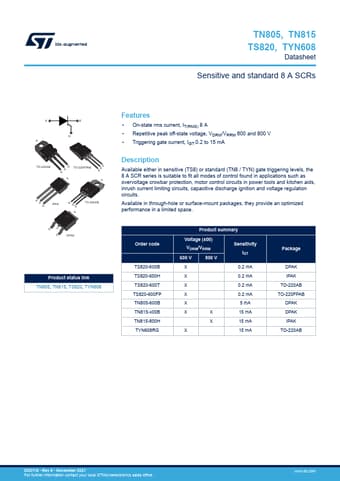

datasheet Preview Page 1 from Datasheet4u.com

TS820_STMicroelectronics.pdf

TS820-600H Datasheet Preview — This datasheet PDF includes multiple part numbers: TS820-600H, TS820. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS820-600H, TS820

Manufacturer:

STMicroelectronics ↗

File Size:

384.06 KB

Description:

Sensitive and standard 8A SCRs

Note:

This datasheet PDF includes multiple part numbers: TS820-600H, TS820.
Please refer to the document for exact specifications by model.

Features

* On-state rms current, IT(RMS) 8 A
* Repetitive peak off-state voltage, VDRM/VRRM 600 and 800 V

Applications

* such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition and voltage regulation circuits. Available in through-hole or surface-mount packages, they provide an optimized performance in a limited spa
