TS820

SCRs

TS820 Features

* Blocking voltage to 800 V On-state RMS current to 8 A Ultra low gate trigger current SYMBOL PARAMETER VDRM Repetitive peak off-state voltages IT RMS RMS on-state current ITSM Non-repetitive peak on-state current 600T 800T Value 600 800 8 73 Unit V A A SYMBOL Rth j-c PARAMETER Junction to

TS820 General Description

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

TS820 Datasheet (417.23 KB)

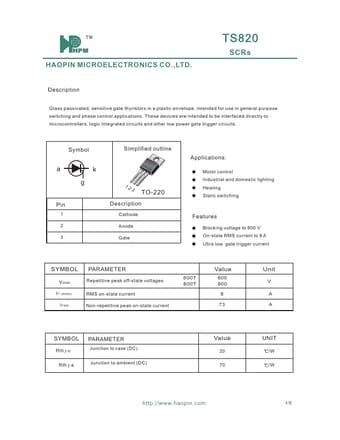

Preview of TS820 PDF

Datasheet Details

Part number:

TS820

Manufacturer:

HAOPIN

File Size:

417.23 KB

Description:

Scrs.
