TS820-600FP

Sensitive and standard 8A SCRs

TS820-600FP Features

* On-state rms current, IT(RMS) 8 A

* Repetitive peak off-state voltage, VDRM/VRRM 600 and 800 V

* Triggering gate current, IGT 0.2 to 15 mA Datasheet - production data Description Available either in sensitive (TS8) or standard (TN8 / TYN) gate triggering levels, the 8 A S

TS820-600FP General Description

Available either in sensitive (TS8) or standard (TN8 / TYN) gate triggering levels, the 8 A SCR series is suitable to fit all modes of control found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capac.

TS820-600FP Datasheet (384.06 KB)

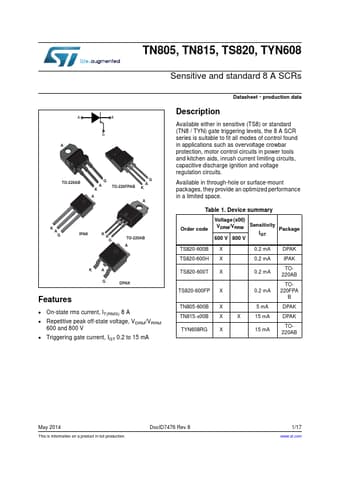

Preview of TS820-600FP PDF

Datasheet Details

Part number:

TS820-600FP

Manufacturer:

STMicroelectronics ↗

File Size:

384.06 KB

Description:

Sensitive and standard 8a scrs.
TN805, TN815, TS820, TYN608 Sensitive and standard 8 A SCRs A A K G TO-220AB G A K A TO-220FPAB G A K A KA G IPAK KA G TO-220AB A KA G DP.
