TS824-1.2 Datasheet - ST Microelectronics

HIGH THERMAL STABILITY MICROPOWER SHUNT VOLTAGE REFERENCE

TS824-1.2 General Description

The TS824 is a low power shunt voltage reference featuring a very low temperature coefficient of 50ppm/°C as a maximum value. Providing 1.225V output voltage, the TS824 operates over the industrial temperature range (-40 to +85°C). Ideal for battery-powered equipments where power conservation is cri.

TS824-1.2 Datasheet (151.62 KB)

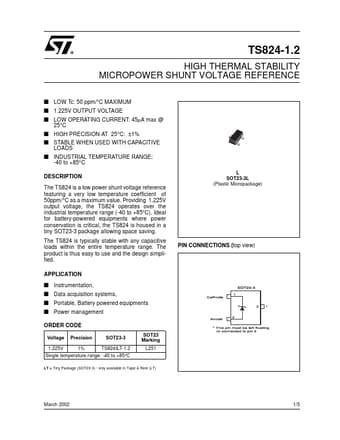

TS824-1.2 Datasheet Preview — Preview of TS824-1.2 PDF

Datasheet Details

Part number:

TS824-1.2

Manufacturer:

STMicroelectronics ↗

File Size:

151.62 KB

Description:

High thermal stability micropower shunt voltage reference.
TS824-1.2 HIGH THERMAL STABILITY MICROPOWER SHUNT VOLTAGE REFERENCE s LOW Tc: 50 ppm/°C MAXIMUM s 1.225V OUTPUT VOLTAGE s LOW OPERATING CURRENT: 45µA .
