TS82420FK

Broadband SPDT GaN RF Switch

TS82420FK Features

* Low insertion loss: 0.2 @ 800MHz

* Low insertion loss: 0.3 @ 2700MHz

* High isolation: 40 @ 800MHz

* High isolation: 25 @ 2700MHz

* P0.1dB: 40dBm CW, 45dBm Peak Power

* No external DC blocking capacitors on RF lines

* Versatile 2.6-5.25V power supply

* Operating fre

TS82420FK General Description

The TS82420FK is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applications. Its broadband behavior from 30 MHz to 5.0 GHz frequencies makes the TS82420FK an excellent switch for all applications requiring low insertion loss, high isolat.

TS82420FK Datasheet (519.73 KB)

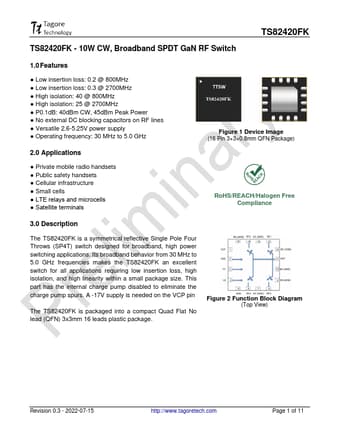

Preview of TS82420FK PDF

Datasheet Details

Part number:

TS82420FK

Manufacturer:

Tagore

File Size:

519.73 KB

Description:

Broadband spdt gan rf switch.
