TS8043N

Broadband SP4T GaN RF Switch

TS8043N Features

* Low insertion loss: 0.37dB @ 1GHz

* High isolation: 45dB @ 400MHz, 36dB @ 1GHz

* 100W CW, 200W Peak Power

* No external DC blocking capacitors on RF lines

* Versatile 2.6-5.25V power supply

* Operating frequency: 30MHz to 1.0GHz TS8043N 2.0 Applications

* Private mobi

TS8043N General Description

The TS8043N is a 2nd Generation symmetrical reflective Single Pole Four Throw (SP4T) switch designed for broadband, high power switching applications. With a simple broadband match, the TS8043N can cover 30M to 1.0GHz bandwidth and provide low insertion loss, high isolation, and high linearity withi.

TS8043N Datasheet (1.14 MB)

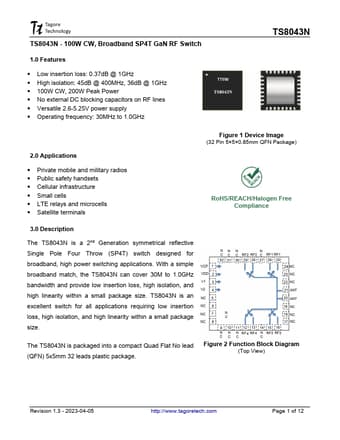

TS8043N Datasheet Preview — Preview of TS8043N PDF

Datasheet Details

Part number:

TS8043N

Manufacturer:

Tagore

File Size:

1.14 MB

Description:

Broadband sp4t gan rf switch.
