TS84230K 20W GaN Broadband RF Switch

TS84230K Description

TS84230K TS84230K * 20 W GaN Broadband RF Switch SPDT, charge pump disabled.1.0 .
The TS84230K is a symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high peak power switching applications.

TS84230K Features

* Low insertion loss: 0.2dB @ 800MHz
* High isolation: 45dB @ 800MHz
* High CW power handling capability 20 W
* No external DC blocking capacitors on RF lines
* All RF ports OFF state
* Versatile 2.6-5.25V power supply
* Operating frequency: 30MHz to 5.0GHz
* Interna

TS84230K Applications

* Private mobile radio handsets
* Public safety handsets
* Cellular infrastructure
* Small cells (3×3mm QFN package)
* LTE relays and microcells

📥 Download Datasheet

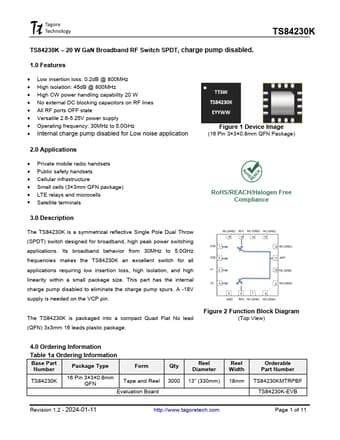

Preview of TS84230K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS84230K
Manufacturer
Tagore
File Size
808.59 KB
Datasheet
TS84230K-Tagore.pdf
Description
20W GaN Broadband RF Switch
