TS8423K GaN Broadband RF Switch SPDT

TS8423K Description

TS8423K TS8423K * 20 W GaN Broadband RF Switch SPDT 1.0 .
The TS8423K is a symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high peak power switching applications.

TS8423K Features

* Low insertion loss: 0.2dB @ 800MHz
* High isolation: 45dB @ 800MHz
* High CW power handling capability 20 W
* No external DC blocking capacitors on RF lines
* All RF ports OFF state
* Versatile 2.6-5.25V power supply
* Operating frequency: 30MHz to 5.0GHz 2.0 Applicatio

TS8423K Applications

* Private mobile radio handsets
* Public safety handsets
* Cellular infrastructure
* Small cells (3×3mm QFN package)
* LTE relays and microcells

📥 Download Datasheet

Preview of TS8423K PDF

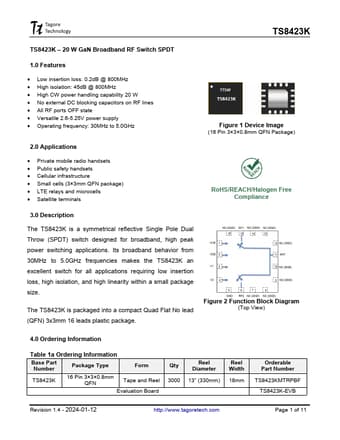

datasheet Preview Page 2 datasheet Preview Page 3
