TS824-2.5

HIGH THERMAL STABILITY MICROPOWER SHUNT VOLTAGE REFERENCE

TS824-2.5 General Description

The TS824-2.5 is a low power shunt voltage reference featuring a very low temperature coefficient of 50ppm/°C as a maximum value. Providing a 2.5V output voltage, the TS824-2.5 operates over the industrial temperature range (-40 to +85°C). Ideal for battery-powered equipments where power conservatio.

TS824-2.5 Datasheet (187.48 KB)

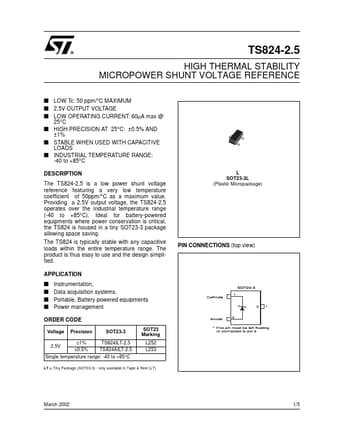

Preview of TS824-2.5 PDF

Datasheet Details

Part number:

TS824-2.5

Manufacturer:

STMicroelectronics ↗

File Size:

187.48 KB

Description:

High thermal stability micropower shunt voltage reference.
TS824-2.5 HIGH THERMAL STABILITY MICROPOWER SHUNT VOLTAGE REFERENCE s LOW Tc: 50 ppm/°C MAXIMUM s 2.5V OUTPUT VOLTAGE s LOW OPERATING CURRENT: 60µA ma.
