TS8729N

550W 20% Duty Cycle 2.0ms Pulse Width Peak GaN RF Switch

TS8729N Features

* Low TX insertion loss: 0.19dB @ 800MHz

* High isolation: 40dB @ 800MHz

* 550W 20% Duty Cycle 2.0ms Pulse Width

* Versatile 2.6-5.5V power supply

* Operating frequency: 500MHz to 2.0GHz 2.0 Applications

* L-Band Radar

* TBD Figure 1 Device Image (32 Pin 5×5×1.25mm QFN

TS8729N General Description

The TS8729N is an asymmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high power switching applications. The TS8729N can cover 500MHz to 2.0GHz bandwidth and provide low insertion loss, high isolation and high linearity within a small package size. The TS8729N is pac.

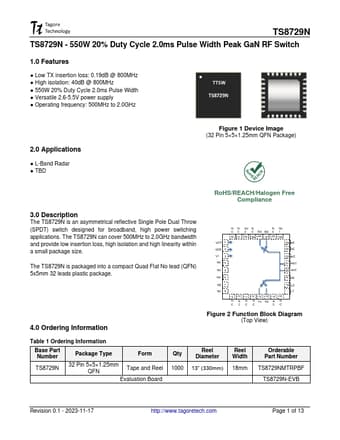

TS8729N Datasheet (923.84 KB)

Preview of TS8729N PDF

Datasheet Details

Part number:

TS8729N

Manufacturer:

Tagore

File Size:

923.84 KB

Description:

550w 20% duty cycle 2.0ms pulse width peak gan rf switch.
