AT28C010, AT28C010-1 - 1-megabit (128K x 8) Paged Parallel EEPROM

ATMEL

📥 Download Datasheet

AT28C010 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT28C010, AT28C010-1. Please refer to the document for exact specifications by model.

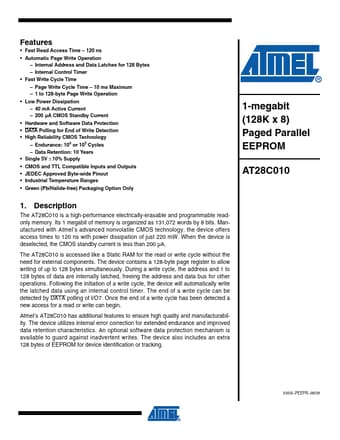

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT28C010, AT28C010-1
Manufacturer	ATMEL ↗
File Size	375.86 KB
Description	1-megabit (128K x 8) Paged Parallel EEPROM
Datasheet	AT28C010-1-ATMEL.pdf
Note	This datasheet PDF includes multiple part numbers: AT28C010, AT28C010-1. Please refer to the document for exact specifications by model.

AT28C010 Product details

Description

The AT28C010 is a high-performance electrically-erasable and programmable readonly memory.

Features

Fast Read Access Time.
120 ns.
Automatic Page Write Operation.
Internal Address and Data Latches for 128 Bytes.
Internal Control Timer.
Fast Write Cycle Time.
Page Write Cycle Time.
10 ms Maximum.
1 to 128-byte Page Write Operation.
Low Power Dissipation.
40 mA Active Current.
200 µA CMOS Standby Current.
Hardware and Software Data Protection.
DATA Polling for End of Wri.
