AT28C040 Datasheet - ATMEL Corporation

4-Megabit (512K x 8) Paged Parallel EEPROM

AT28C040 Features

* Read Access Time

* 200 ns

* Automatic Page Write Operation

* Internal Address and Data Latches for 256 Bytes

* Internal Control Timer

* Fast Write Cycle Time

* Page Write Cycle Time

* 10 ms Maximum

* 1 to 256 Byte Page Write O

AT28C040 General Description

The AT28C040 is a high-performance electrically erasable and programmable readonly memory (EEPROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 200 ns with power dissipation of jus.

AT28C040 Datasheet (204.24 KB)

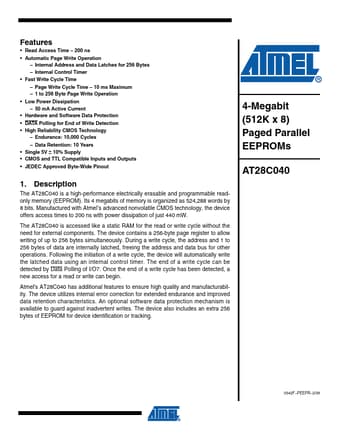

AT28C040 Datasheet Preview — Preview of AT28C040 PDF

Datasheet Details

Part number:

AT28C040

Manufacturer:

ATMEL Corporation

File Size:

204.24 KB

Description:

4-megabit (512k x 8) paged parallel eeprom.
