AT49F4096 - 4 Megabit 5-volt Only CMOS Flash Memory

ATMEL

📥 Download Datasheet

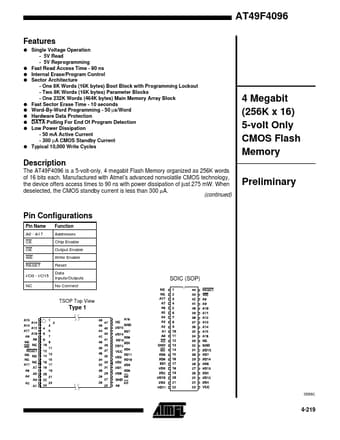

AT49F4096 Datasheet Preview — Preview of AT49F4096 PDF

Datasheet Details

Part number	AT49F4096
Manufacturer	ATMEL
File Size	186.57 KB
Description	4 Megabit 5-volt Only CMOS Flash Memory
Datasheet	AT49F4096-ATMEL.pdf

AT49F4096 Product details

Description

The AT49F4096 is a 5-volt-only, 4 megabit Flash Memory organized as 256K words of 16 bits each.Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 90 ns with power dissipation of just 275 mW.When deselected, the CMOS standby current is less than 300 µA.(continued) 4 Megabit (256K x 16) 5-volt Only CMOS Flash Memory Preliminary

Features

Single Voltage Operation - 5V Read - 5V Reprogramming Fast Read Access Time - 90 ns.
Internal Erase/Program Control.
Sector Architecture - One 8K Words (16K bytes) Boot Block with Programming Lockout - Two 8K Words (16K bytes) Parameter Blocks - One 232K Words (464K bytes) Main Memory Array Block Fast Sector Erase Time - 10 seconds.
Word-By-Word Programming - 50 µs/Word Hardware Data Protection.
DATA Polling For End Of Program Detec.
