AT86RF212B

700/800/900MHz Transceiver

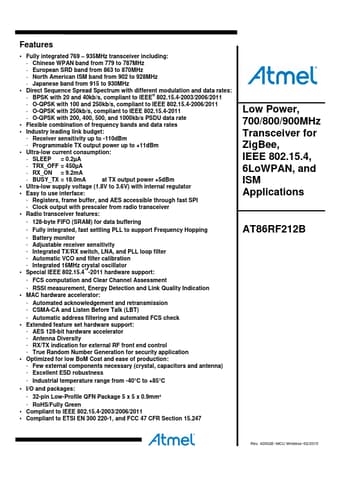

AT86RF212B Features

* Fully integrated 769

* 935MHz transceiver including: - Chinese WPAN band from 779 to 787MHz - European SRD band from 863 to 870MHz - North American ISM band from 902 to 928MHz - Japanese band from 915 to 930MHz

* Direct Sequence Spread Spectrum with different modulation a

AT86RF212B General Description

Table 1-1. Atmel AT86RF212B Pin Description. Pins Name Type 1 DIG3 Digital output (Ground) 2 DIG4 Digital output (Ground) 3 AVSS 4 RFP 5 RFN 6 AVSS 7 DVSS 8 /RST 9 DIG1 Ground RF I/O RF I/O Ground Ground Digital input Digital output (Ground) 10 DIG2 Digital output (Ground) 11 12 13, 14 .

AT86RF212B Datasheet (3.20 MB)

Preview of AT86RF212B PDF

Datasheet Details

Part number:

AT86RF212B

Manufacturer:

ATMEL

File Size:

3.20 MB

Description:

700/800/900mhz transceiver.
