AT86RF401

Smart RF Wireless Data Microtransmitter

AT86RF401 Features

* RF Frequency Range of 264

* 456 MHz 6 dBm RF Output into Matched Antenna RF Output Power Adjustable over 36 dB with 1 dB Res

AT86RF401 General Description

The Atmel AT86RF401 Smart RF Microtransmitter is a highly integrated, low-cost RF transmitter, combined with an AVR RISC microcontroller. It requires only a crystal, a single LiMnO2 coin cell (CR2032 or similar), three capacitors, an inductor and a tunedloop antenna to implement a complete on-off ke.

AT86RF401 Datasheet (973.81 KB)

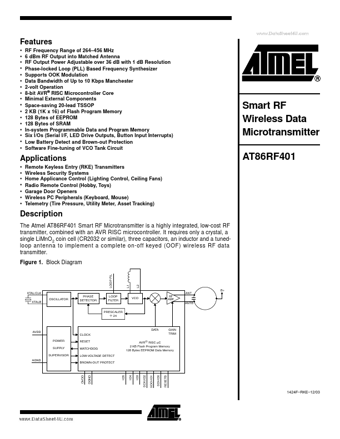

Preview of AT86RF401 PDF

Datasheet Details

Part number:

AT86RF401

Manufacturer:

ATMEL

File Size:

973.81 KB

Description:

Smart rf wireless data microtransmitter.
